characteristic:

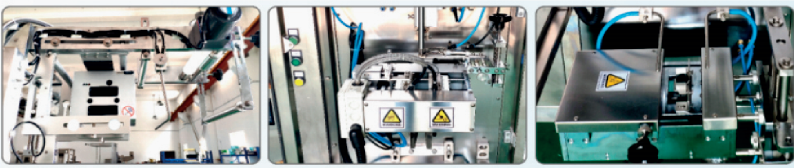

This machine is a single row strip packaging machine developed specifically for filling liquids and viscous substances. Although it is a single row packaging machine, unlike other strip machines, it adopts a continuous drive mode, which also has good packaging performance and has received high praise for its economy. Standard equipment includes color coded photoelectric tracking control or continuous pattern operation, variable bag length, strip-shaped cutting depth, micro adjustment of cutting position, micro adjustment of cutting angle, and other necessary devices for bag making and filling according to the different packaging products. In addition, different pumps can be selected to correspond to continuous filling and intermittent filling.

Main packaging purpose:

This machine is used for filling and packaging cheese, liquid soup ingredients, cosmetics, mayonnaise, jam, fruit jelly, etc.

Technical parameters:

Filling material: liquid, viscous body

Packaging form: back sealed

Variable bag length range: 45-160mm

Bag width: 25mm-50mm (the molding machine needs to be replaced when the width changes)

Packaging capacity: 20-80 bags per minute (actual filling and packaging speed may vary depending on product size, raw material properties, etc.)

Filling capacity: 10-50cc (The measurement range of filling capacity varies depending on the properties of the raw materials and the feeding device.)

Electricity usage: 3-phase 380V3KW

Dimensions (Haiba Pump Filling Device): 900mm (L) * 900mm (W) * 230mm (H)

Host weight: approximately 450kg
